VideoDB Editor lets you create videos programmatically using code instead of clicking timelines. You define what you want (assets, effects, timing), and the engine handles the rendering. This guide is your complete conceptual introduction. By the end, you’ll understand how to compose anything from simple clips to complex multi-layer productions - all through code.

Why Code-First Video Editing?

Traditional video editors are built for one-off productions. But what if you need to:

Generate 100 personalized videos from a template
Build a TikTok content pipeline that runs daily
Create video variations for A/B testing
Automate highlight reels from live streams

Code changes everything:

Reusability – One video asset, infinite variations
Scalability – Loop over data to generate hundreds of videos
Version control – Git-track your compositions
Automation – Integrate with AI, databases, APIs

The 4-Layer Architecture

VideoDB Editor uses a hierarchy where each layer has one job. Understanding this structure is the key to mastering composition: Asset → Clip → Track → Timeline

Timeline architecture overview showing the 4-layer hierarchy: Asset, Clip, Track, and Timeline

Let’s walk through each layer using the simplest possible example: one video asset playing for 10 seconds. This is the “Hello World” of Editor - understanding this foundation lets you build anything.

Installing `VideoDB` in your environment

VideoDB is available as a Python package and Node.js package.

pip install videodb

Layer 1: Assets – Your Raw Materials

Assets are your content library. They reference media that exists in your VideoDB collection but don’t define how or when it plays.

VideoAsset

Your main video content. Each VideoAsset points to a video file via its ID. Key parameters:

id (required) – The VideoDB media ID
start (optional) – Trim point in seconds (e.g., start=10 skips first 10s of source)
volume (optional) – Audio level: 0.0 (muted) to 2.0 (200%), default 1.0
crop (optional) – Crop the sides of an asset by a relative amount. The size of the crop is specified using a scale between 0 and 1. A left crop of 0.5 will crop half of the asset from the left, a top crop of 0.25 will crop the top by quarter of the asset.

Real example:

from videodb.editor import Timeline, Track, Clip, VideoAsset

video_asset = VideoAsset(
  # Create a VideoAsset pointing to a video file in your collection
    id=video.id,
    start=0,
    volume=1
)
# Ready to use in a Clip

This says: “Use the video from your VideoDB collection, start from the beginning (start=0), and keep original volume (volume=1).” Important distinction: VideoAsset.start trims the source file. Where it appears on the timeline is controlled later at the Track layer. This “double start” concept is critical - we’ll explore it more in Layer 3 (Tracks).

AudioAsset

Background music, voiceovers, or sound effects. Works exactly like VideoAsset. Key parameters:

id (required) – The VideoDB audio file ID
start (optional) – Same trim behavior as VideoAsset
volume (optional) – 0.0-2.0 range (0.2 = 20% volume)

ImageAsset

Logos, watermarks, title cards, or static backgrounds. Key parameters:

id (required) – The VideoDB image ID

Images are static by nature - duration, position, and size are controlled at the Clip layer.

TextAsset

Custom text overlays with full typography control. Key parameters:

text (required) – The string to display
font (optional) – Font object with family, size, color, opacity
border, shadow, background (optional) – Styling objects
alignment (optional) – Position on screen
tabsize (optional) – Tab size for text formatting
line_spacing (optional) – Spacing between lines
width (optional) – Width of text box in pixels
height (optional) – Height of text box in pixels

Color format: ASS-style &HAABBGGRR in hex (e.g., &H00FFFFFF = white)

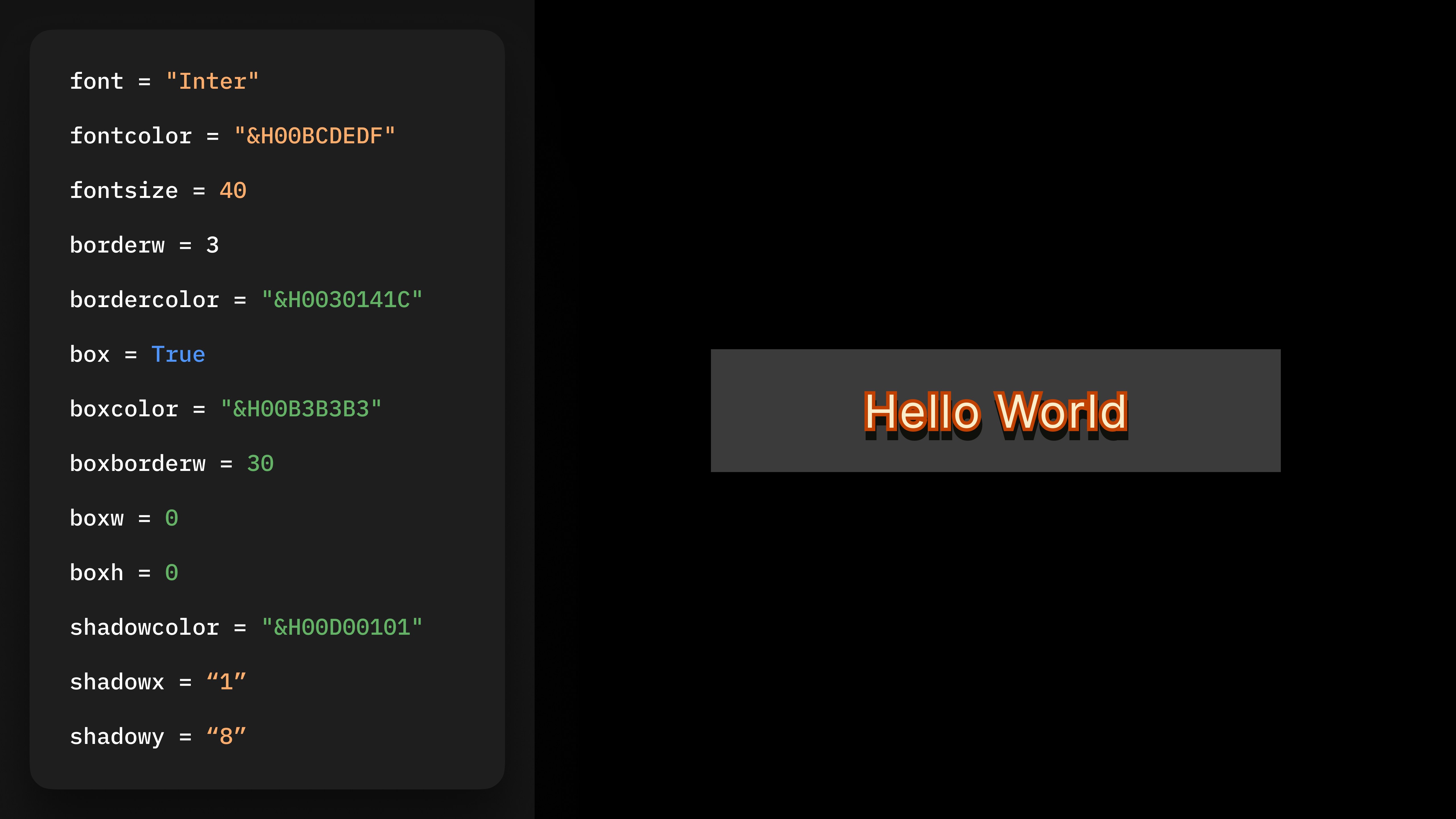

TextAsset example showing custom text overlays with typography control

CaptionAsset

Auto-generated subtitles synced to speech. This is where VideoDB gets magical. Important: CaptionAsset is a separate asset type from TextAsset. While TextAsset is for custom text overlays you write yourself, CaptionAsset automatically generates subtitles from video speech. Key parameters:

src (required) – Set to "auto" to generate captions from video speech
animation (optional) – How words appear: reveal, karaoke, supersize, box_highlight, impact, color_highlight
primary_color, secondary_color (optional) – ASS-style colors
font, positioning, border, shadow styling (optional)

Critical requirement: Before using CaptionAsset(src="auto"), you must call video.index_spoken_words() on the source video. This indexes the speech for auto-caption generation. Without it, captions won’t generate.

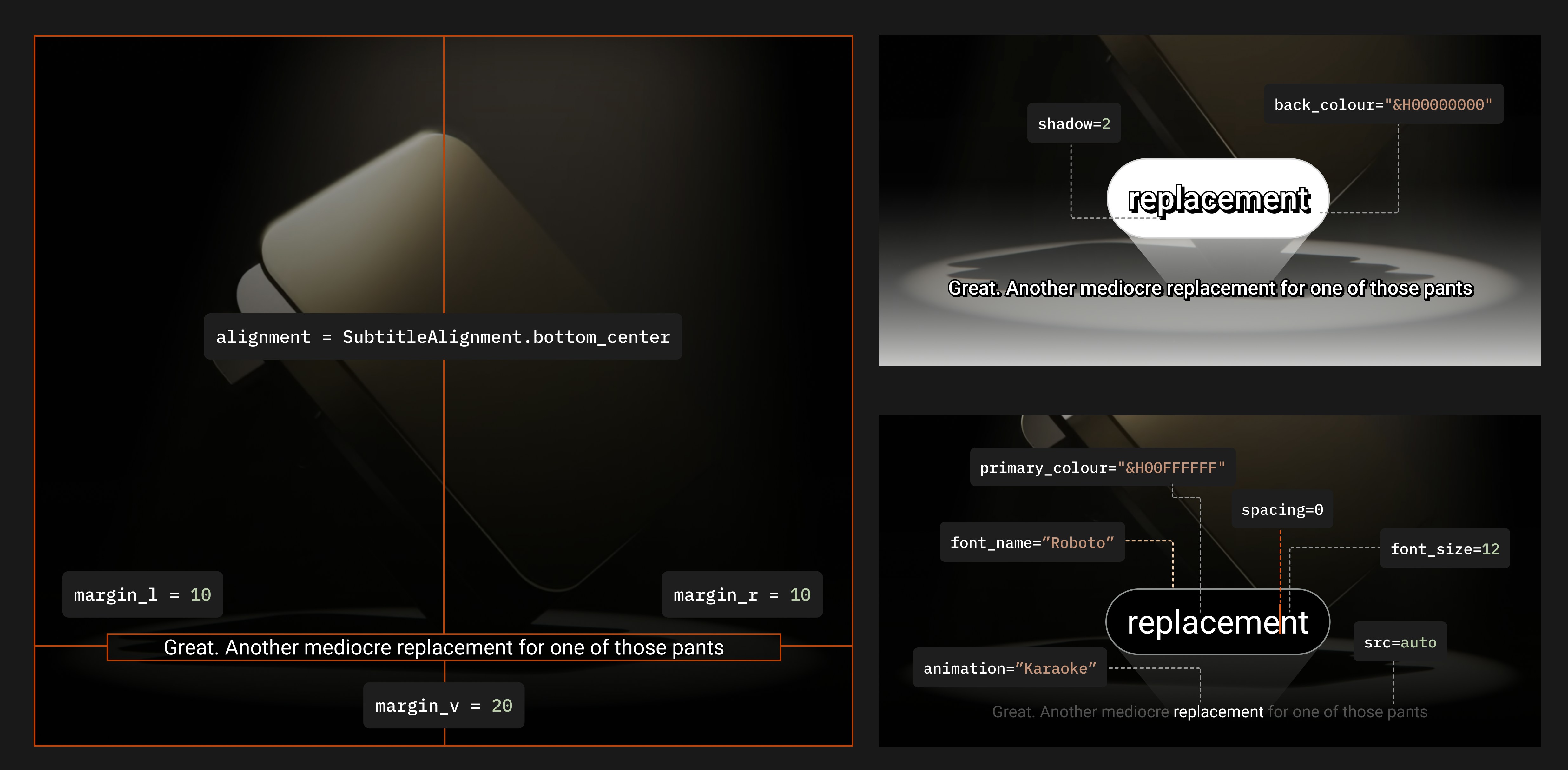

CaptionAsset example showing auto-generated subtitles synced to speech with animation

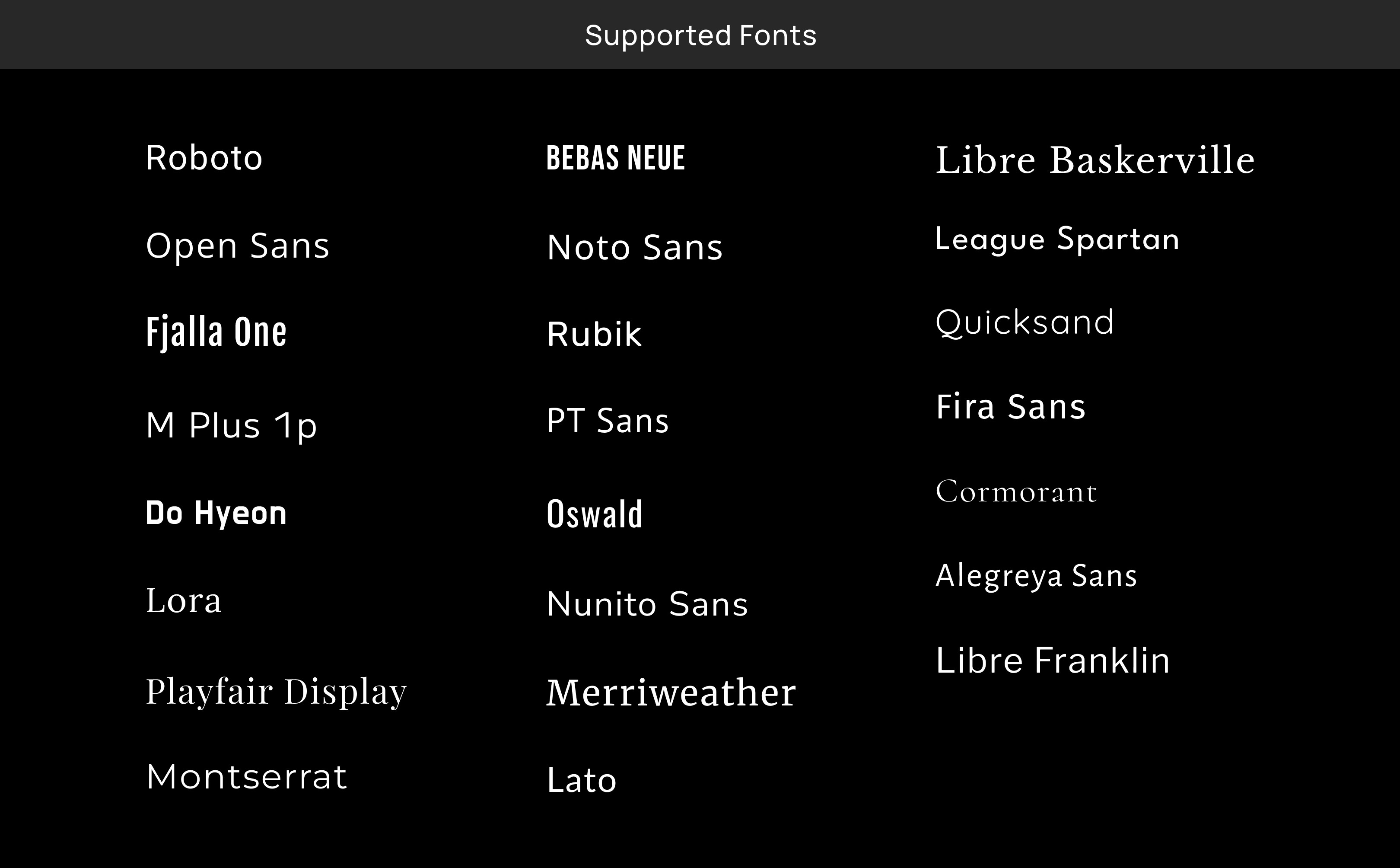

Supported Fonts for Text and Caption Assets

Supported Indic fonts:

Noto Sans Kannada
Noto Sans Devanagari
Noto Sans Gujarati
Noto Sans Gurmukhi

Recap: Assets answer “What content exists?” They don’t yet define timing, size, position, or effects. That’s the Clip layer’s job.

Layer 2: Clips – The Presentation Engine

Clips wrap Assets and define how and how long they appear. This is your effects layer.

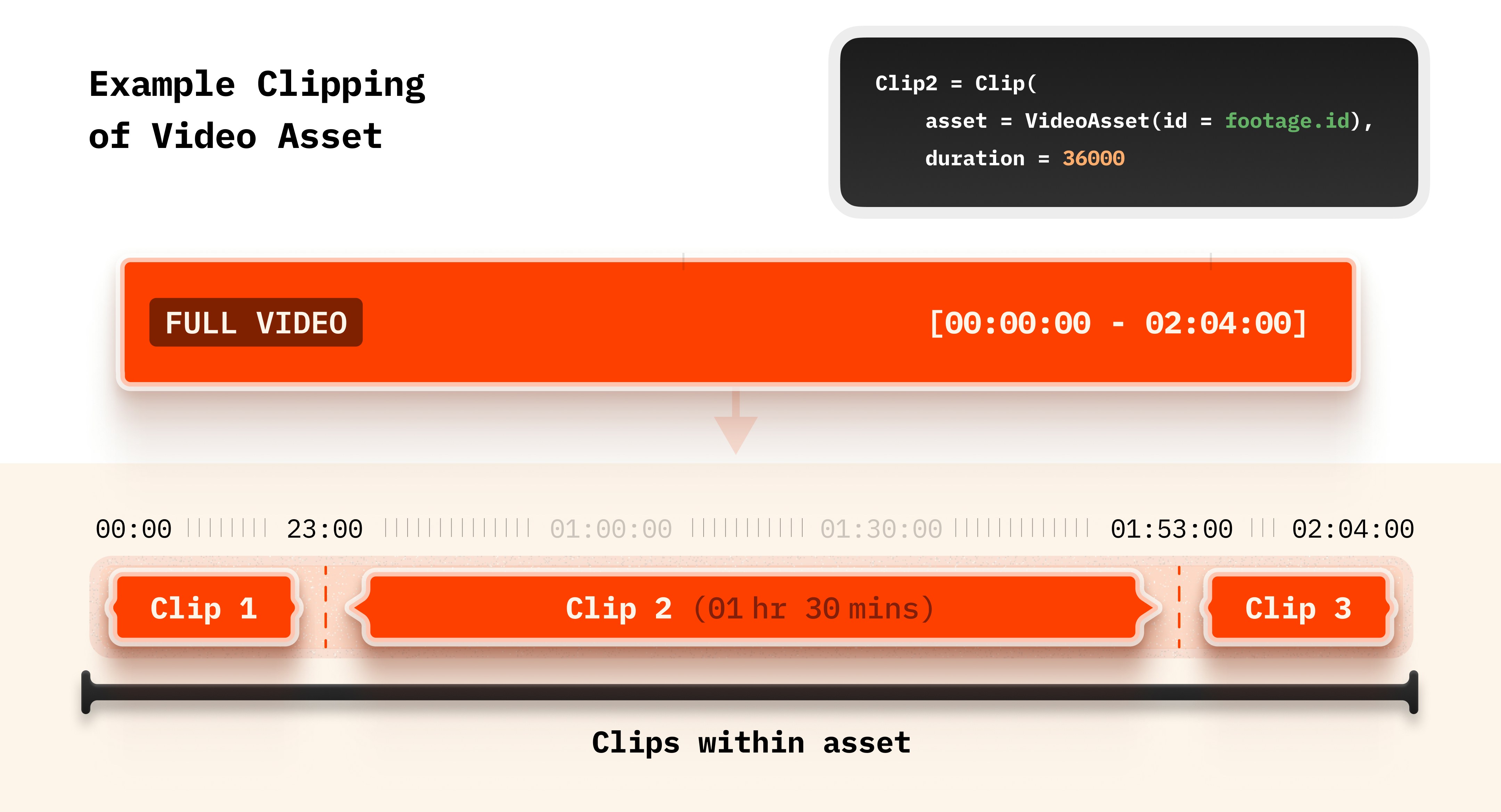

Clip layer showing how assets are wrapped with effects, positioning, and duration

Every Clip must have an asset and a duration. Everything else is optional.

Duration – How Long It Plays

duration is a float in seconds. It defines how long the clip plays on the timeline. Real example:

from videodb import Clip
clip = Clip(
  asset=video_asset,
  duration=10
)

“Play this VideoAsset for 10 seconds.” Key insight: Duration is independent of the source file’s length. If your source is 2 minutes but you set duration=10, only 10 seconds play (starting from VideoAsset.start).

Fit – How It Scales to Canvas

When your asset’s aspect ratio doesn’t match the timeline’s, fit controls scaling behavior. Four modes:

Fit.crop (most common) – Fills the canvas completely, cropping edges if needed
- Use when: Filling the frame is priority, cropping is acceptable
- Example: 16:9 video on a 9:16 (vertical) timeline
Fit.contain – Fits the entire asset inside the canvas, adding bars if needed
- Use when: Showing all content is priority, bars are acceptable
- Example: Preserving widescreen footage in a square format
Fit.cover – Stretches to fill canvas (distortion possible)
- Use when: Artistic effect or abstract content
Fit.none – Uses native pixel dimensions (no scaling)
- Use when: Precise pixel control needed (e.g., 1:1 pixel mapping)

Real example:

clip = Clip(
  asset=video_asset,
  duration=10,
  fit=Fit.crop
)

“Fill the canvas completely, crop edges if aspect ratios don’t match.”

Position – Where It Appears

Position uses a 9-zone grid system:

top_left      top        top_right
center_left   center     center_right
bottom_left   bottom     bottom_right

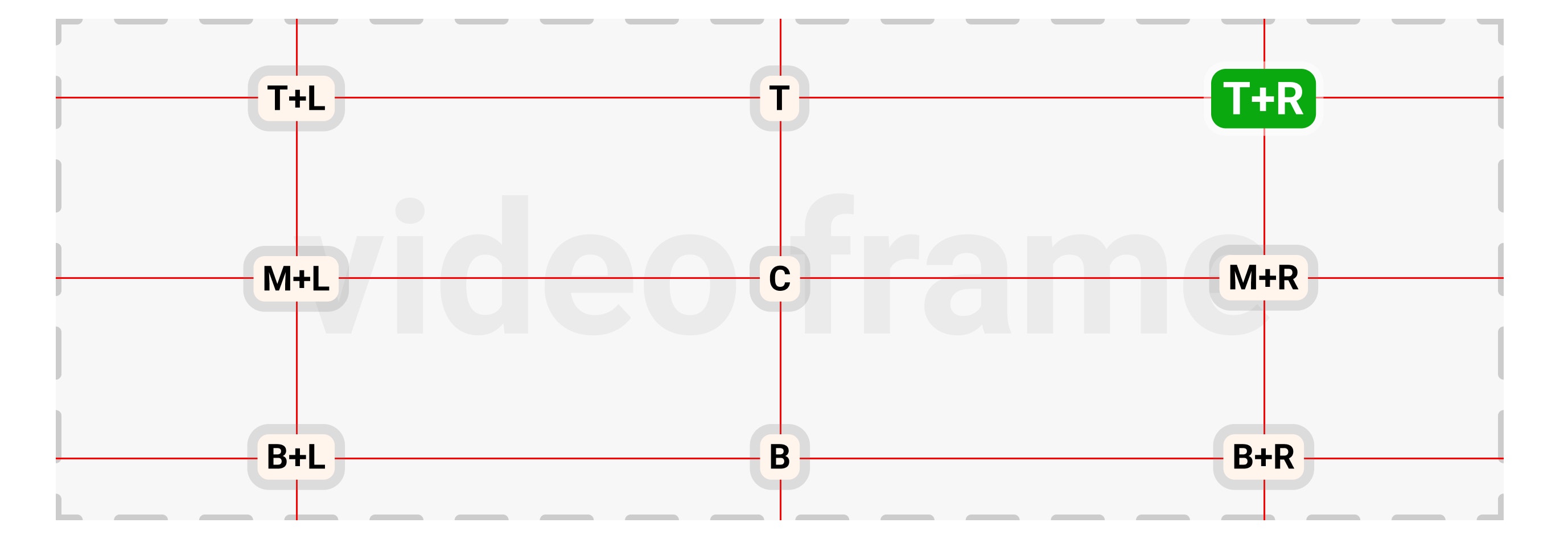

Position 9-zone grid system showing placement options for clips

Real example:

logo_clip = Clip(
  asset=logo,
  duration=30,
  position=Position.top_right
)

“Place the logo in the top-right corner.”

Offset – For fine-tuned positioning

from videodb.editor import Offset

clip = Clip(
    asset=logo,
    duration=30,
    position=Position.center,
    offset=Offset(x=0.3, y=-0.2)
)

This shifts the logo 30% right, 20% up from center.

Offset fine-tuning positioning with x and y adjustments

Scale – Size Adjustment

scale is a multiplier applied after fit. Default is 1.0. Real example:

pip_clip = Clip(
  asset=overlay_video,
  duration=15,
  scale=0.3
)

“Shrink this video to 30% of its fitted size” (perfect for picture-in-picture).

Opacity – Transparency

opacity ranges from 0.0 (invisible) to 1.0 (opaque). Real example:

watermark_clip = Clip(
  asset=logo,
  duration=30,
  opacity=0.6
)

“Make the logo 60% opaque (semi-transparent).”

Filter – Visual Effects

Apply color/blur effects:

from videodb.editor import Filter

clip = Clip(
    asset=VideoAsset(id=video.id),
    duration=10,
    filter=Filter.greyscale
)

Available filters: greyscale, blur, boost (saturation), contrast, darken, lighten, muted, negative.

Filter	Effect
`Filter.greyscale`	Removes all color, creating a black-and-white look
`Filter.blur`	Blurs the scene for artistic or privacy effects
`Filter.contrast`	Increases contrast, making darks darker and lights lighter
`Filter.darken`	Darkens the entire scene
`Filter.lighten`	Lightens the entire scene
`Filter.boost`	Boosts both contrast and saturation for vibrant colors
`Filter.muted`	Reduces saturation and contrast for a subdued look
`Filter.negative`	Inverts colors for a surreal, negative effect

Transition – Fades

Fade in/out at clip start/end:

from videodb.editor import Transition

clip = Clip(
    asset=VideoAsset(id=video.id),
    duration=10,
    transition=Transition(
      in_="fade",
      out="fade",
      duration=2
    )
)

“Fade in over 1 second at start, fade out over 2 seconds at end.” Recap: A Clip wraps an Asset and defines how long it plays (duration) and how it appears (fit, position, scale, opacity, filter, transition). Now let’s see how to place clips on the timeline.

Layer 3: Tracks – Sequencing and Layering

Tracks are timeline lanes. They control when clips play and how they stack.

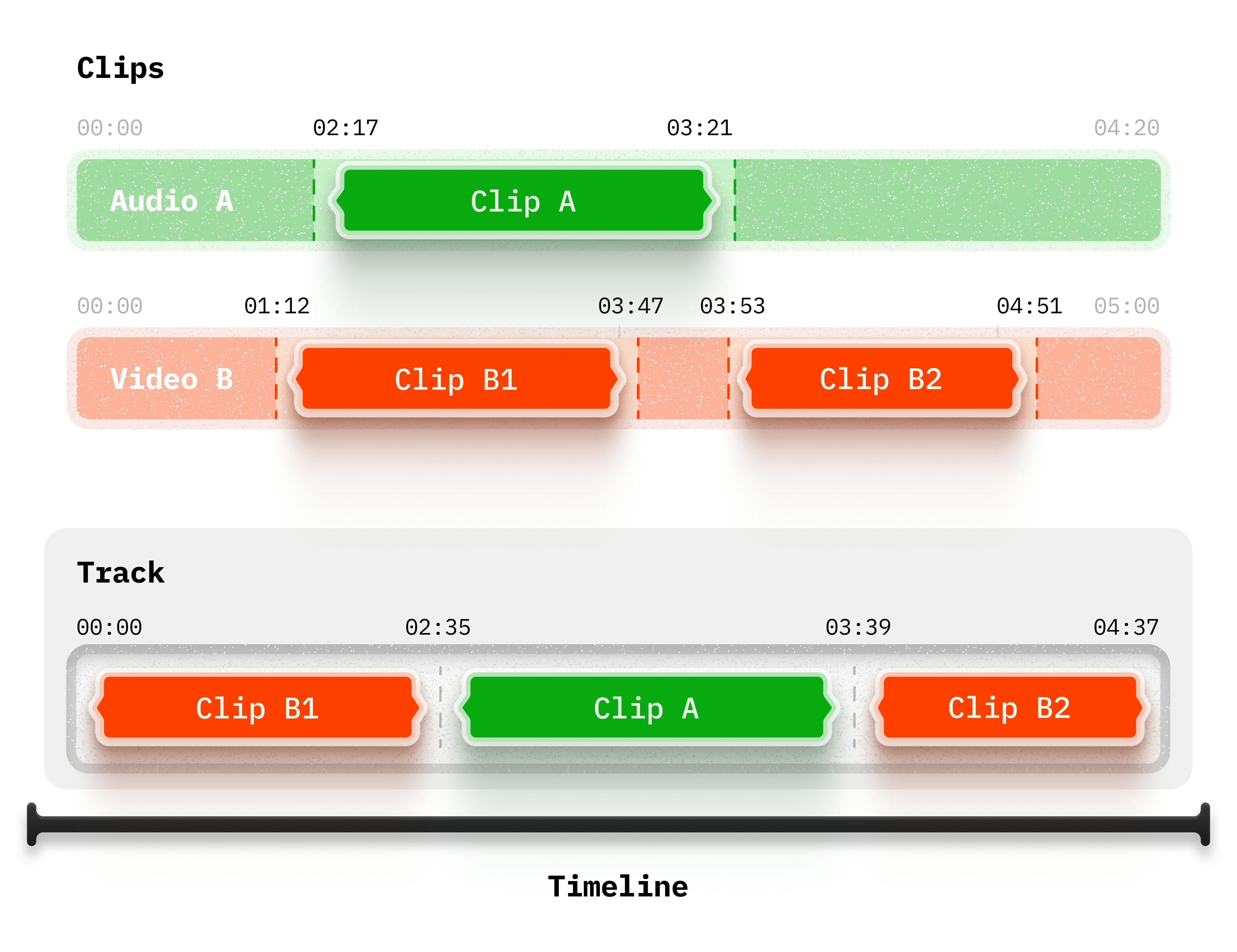

Track layer showing timeline lanes for sequencing and layering clips

The Track Object

A Track is a container you add clips to:

from videodb import Track

track = Track()
track.add_clip(0, clip)  # Add clip at 0 seconds

track.add_clip(start, clip) has two parameters:

start (float, seconds) – When the clip begins on the timeline
clip (Clip object) – The clip to add

Sequential Playback (Same Track)

Clips on the same track play one after another:

track = Track()
track.add_clip(0, clip1)    # 0s-5s
track.add_clip(5, clip2)    # 5s-10s
track.add_clip(10, clip3)   # 10s-15s

This creates a montage - three clips in sequence.

Simultaneous Playback (Different Tracks)

Clips on different tracks at the same timestamp play simultaneously:

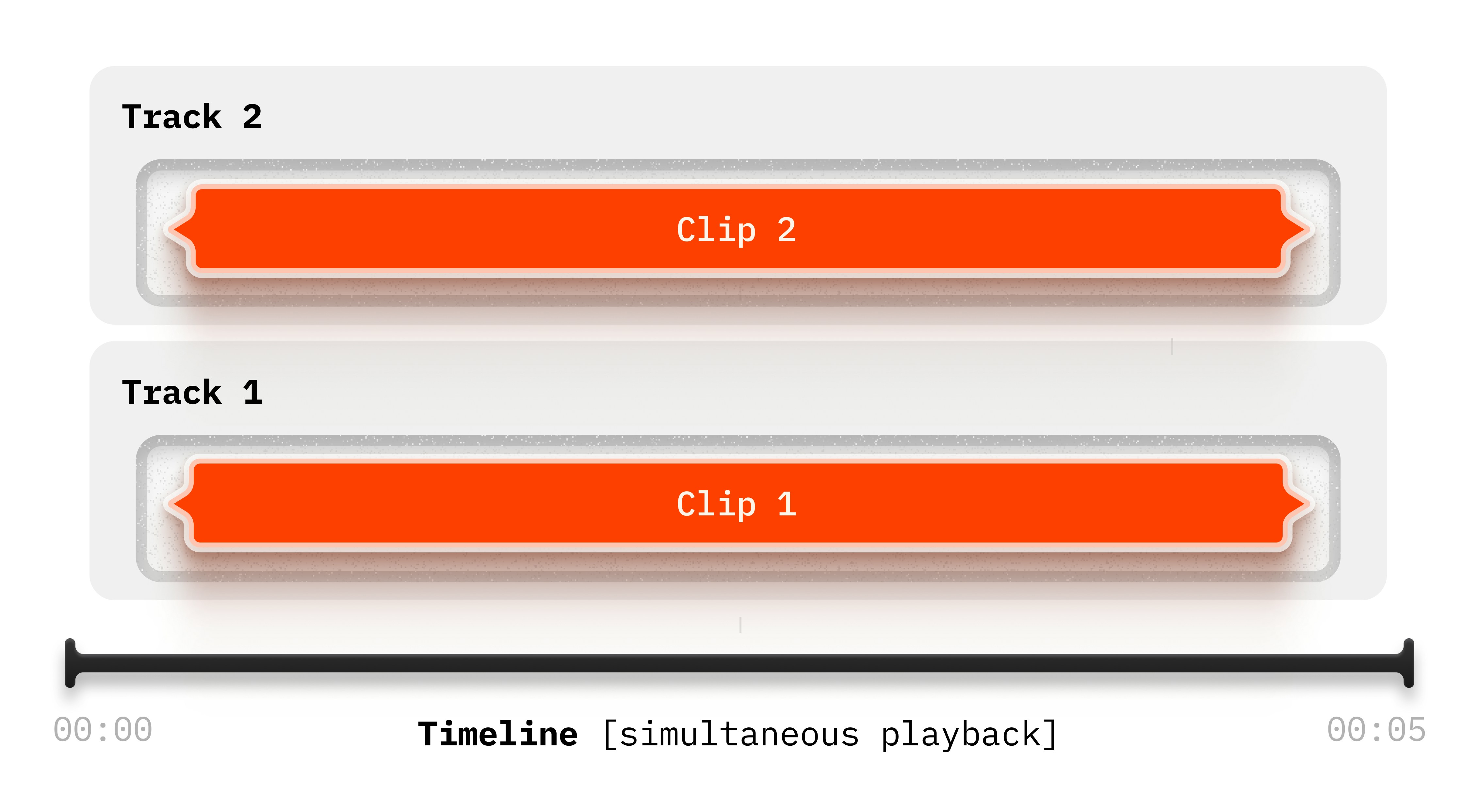

Simultaneous playback showing clips on different tracks playing at the same time

track1 = Track()
track1.add_clip(0, clip1)  # First layer

track2 = Track()
track2.add_clip(0, clip2)  # Second layer (plays at same time)

Both start at 0 seconds, so they play together. This is how you create layered compositions.

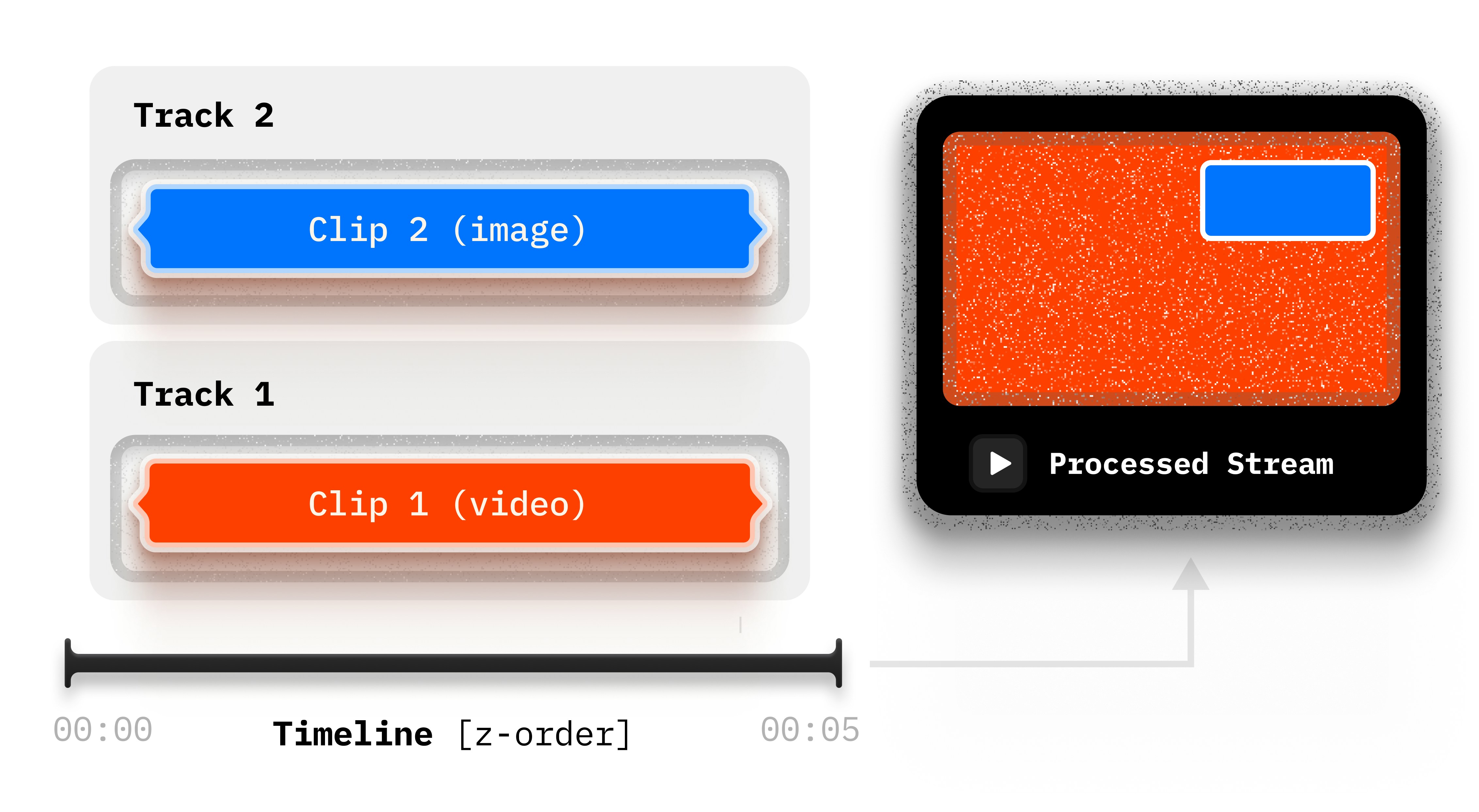

Z-Order (Layering)

Later tracks render on top of earlier tracks.

timeline.add_track(track1)  # Bottom layer
timeline.add_track(track2)  # Renders above track1
timeline.add_track(track3)  # Renders above track2

This is how you create overlays: put background content on track1, overlays on track2.

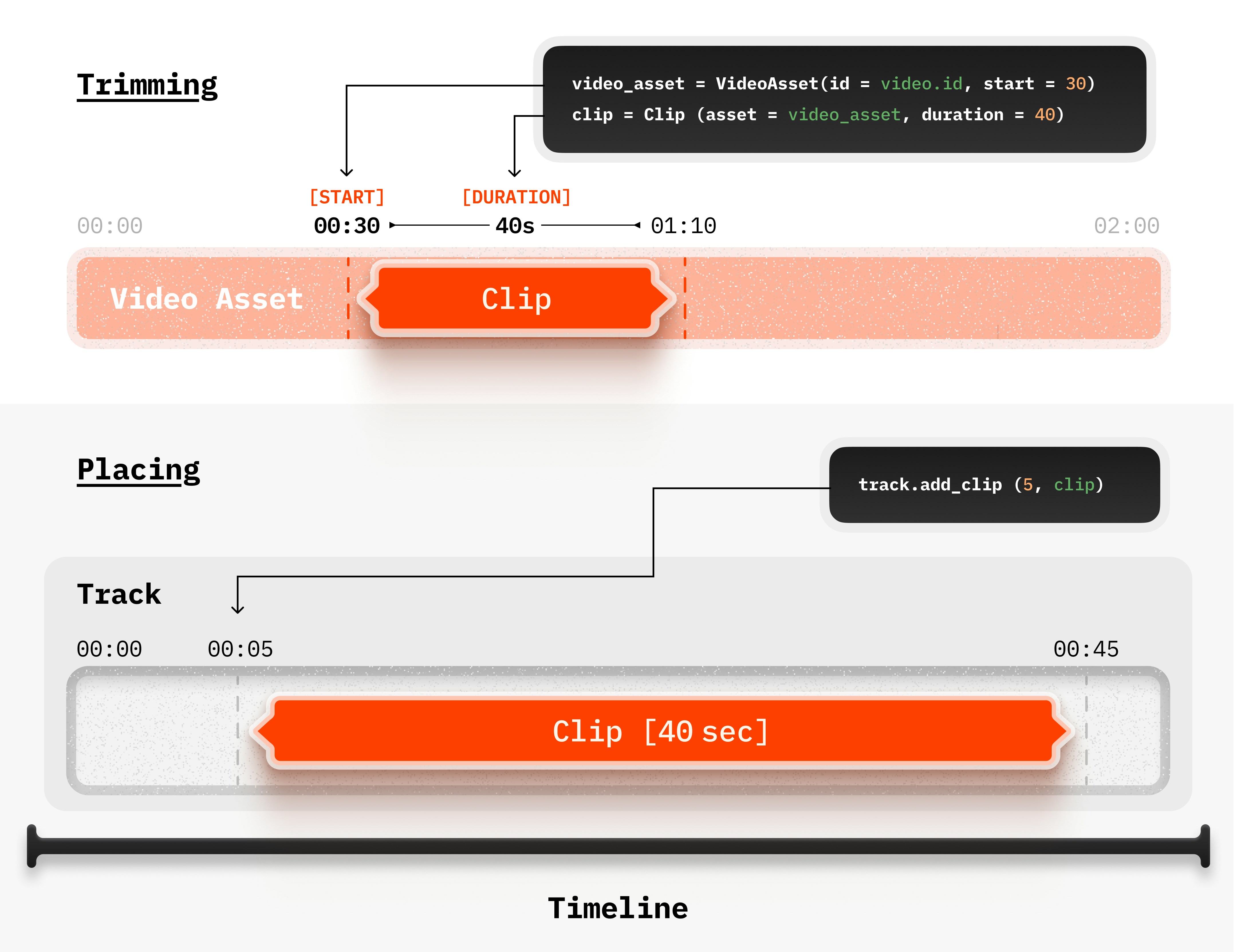

The “Double Start” Concept

There are two separate “start” parameters:

Asset.start – Trims the source file
track.add_clip(start=...) – Places clip on the timeline

Real example:

# Source video is 2 minutes long

video_asset = VideoAsset(
  id=video.id,
  start=30
)  # Skip first 30s of source

clip = Clip(
  asset=video_asset,
  duration=40
)  # Use 40s (from 0:30 to 1:10 of source)

track = Track()
track.add_clip(5, clip)  # Place it at 5-second mark on timeline

Result: The timeline plays seconds 0:30-01:10 of the source video, but it appears at the 5-second mark of the final output. Why this matters: You can extract any segment from source media and place it anywhere on the timeline, independently. For multi-track layering examples (video + music + captions + overlays), see the Advanced Clip Control guide and creative tutorials.

Layer 4: Timeline – The Final Canvas

Timeline is your export settings. It defines resolution, background color, and combines all tracks.

Timeline layer showing the final canvas combining all tracks and export settings

from videodb.editor import Timeline

timeline = Timeline(conn)  # conn is your VideoDB connection
timeline.background = "#808080"  # Grey background (hex color)
timeline.resolution = "600x1060"  # Custom resolution

Resolution

Format: "WIDTHxHEIGHT" Common presets:

"1280x720" – 16:9 horizontal (YouTube, landscape)
"608x1080" – 9:16 vertical (TikTok, Shorts, Reels)
"1080x1080" – 1:1 square (Instagram feed)
"600x1060" – Custom dimensions

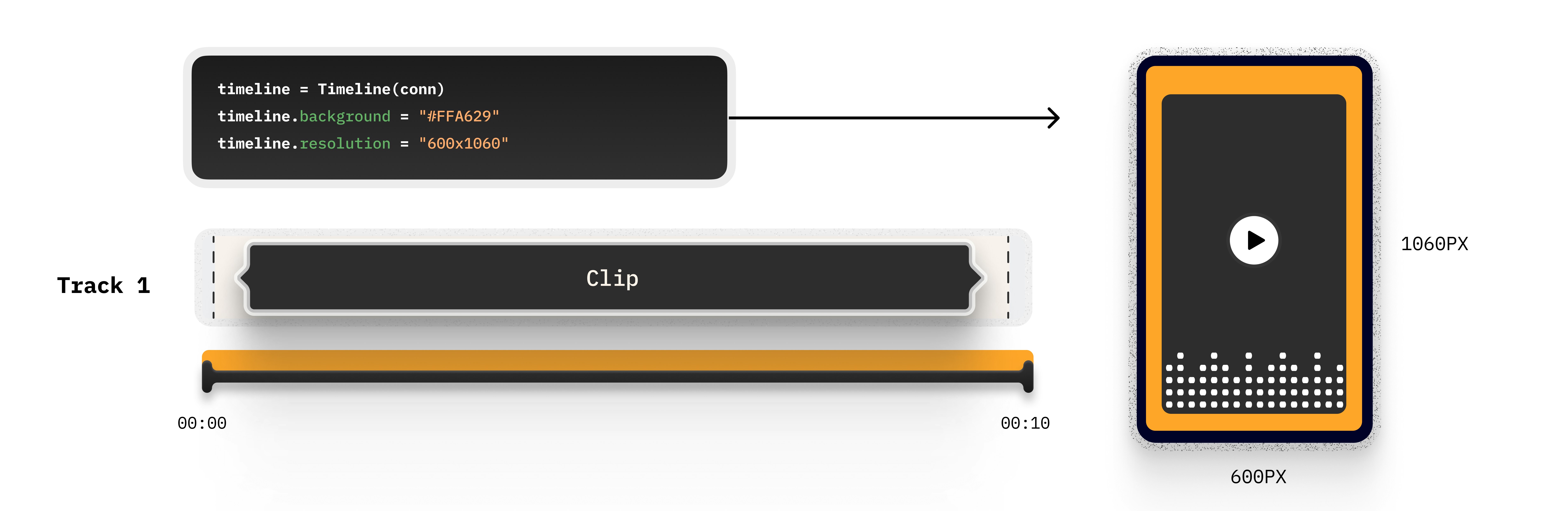

Background

The color shown behind/around clips when they don’t fill the canvas (e.g., when using Fit.contain). Format: hex color string.

Adding Tracks

timeline.add_track(track)

For multiple tracks, order matters - this sets the z-order (layering). Later tracks render on top.

Rendering

stream_url = timeline.generate_stream()
print(stream_url)

This sends your composition to VideoDB’s rendering engine and returns a playable stream URL.

Complete example :

Complete timeline example showing all layers working together

from videodb.editor import Timeline, Track, Clip, VideoAsset

# Create timeline
timeline = Timeline(conn)
timeline.background = "#FFA629"
timeline.resolution = "600x1060"

# Create asset
video_asset = VideoAsset(id=video.id, start=0, volume=1)

# Wrap in clip
clip = Clip(asset=video_asset, duration=10)

# Add to track
track = Track()
track.add_clip(0, clip)

# Add track to timeline
timeline.add_track(track)

# Render
stream_url = timeline.generate_stream()

You’ve just composed your first video programmatically: one video asset playing for 10 seconds. This simple pattern scales to any complexity - just add more assets, clips, and tracks.

Concept Guides (Detailed Explanations)

These guides expand on specific concepts with design principles, edge cases, and best practices:

Fit and Position

Deep dive into aspect ratios, 9-zone positioning, offset mechanics, and framing patterns

Trimming vs Timing

Complete explanation of the “double start” concept with formulas and multi-clip workflows

Caption Asset

Animation styles, ASS color format, positioning, accessibility, and styling best practices

Clip Parameters

Filters, transitions, opacity patterns, and complex multi-layer compositions

What You Can Build

See real-world applications of timeline composition and programmatic video creation:

TikTok Lyric Videos

Transform music into viral vertical clips with AI backgrounds and synced lyrics

Video Statistics Recaps

Turn analytics into cinematic recaps with dynamic animations

Faceless Video Creator

Build complete faceless videos with AI scripts and voiceovers

Chess Match Montages

Automatically extract highlights with AI move detection

Get Started

Timeline Basics

See all concepts in action with hands-on examples and interactive code.

Start Here

Core Concepts

Ingest

Understand

Act

Automate

Build with Agents

​Why Code-First Video Editing?

​The 4-Layer Architecture

​Installing VideoDB in your environment

​Layer 1: Assets – Your Raw Materials

​VideoAsset

​AudioAsset

​ImageAsset

​TextAsset

​CaptionAsset

​Supported Fonts for Text and Caption Assets

​Layer 2: Clips – The Presentation Engine

​Duration – How Long It Plays

​Fit – How It Scales to Canvas

​Position – Where It Appears

​Offset – For fine-tuned positioning

​Scale – Size Adjustment

​Opacity – Transparency

​Filter – Visual Effects

​Transition – Fades

​Layer 3: Tracks – Sequencing and Layering

​The Track Object

​Sequential Playback (Same Track)

​Simultaneous Playback (Different Tracks)

​Z-Order (Layering)

​The “Double Start” Concept

​Layer 4: Timeline – The Final Canvas

​Resolution

​Background

​Adding Tracks

​Rendering

​Complete example :

​Concept Guides (Detailed Explanations)

Fit and Position

Trimming vs Timing

Caption Asset

Clip Parameters

​What You Can Build

TikTok Lyric Videos

Video Statistics Recaps

Faceless Video Creator

Chess Match Montages

​Get Started

Timeline Basics

Why Code-First Video Editing?

The 4-Layer Architecture

Installing `VideoDB` in your environment

Layer 1: Assets – Your Raw Materials

VideoAsset

AudioAsset

ImageAsset

TextAsset

CaptionAsset

Supported Fonts for Text and Caption Assets

Layer 2: Clips – The Presentation Engine

Duration – How Long It Plays

Fit – How It Scales to Canvas

Position – Where It Appears

Offset – For fine-tuned positioning

Scale – Size Adjustment

Opacity – Transparency

Filter – Visual Effects

Transition – Fades

Layer 3: Tracks – Sequencing and Layering

The Track Object

Sequential Playback (Same Track)

Simultaneous Playback (Different Tracks)

Z-Order (Layering)

The “Double Start” Concept

Layer 4: Timeline – The Final Canvas

Resolution

Background

Adding Tracks

Rendering

Complete example :

Concept Guides (Detailed Explanations)

What You Can Build

Get Started
